When we measure a bearing correctly, we are doing more than collecting numbers. We are caring for a machine, protecting safety, reducing waste, and serving the people who depend on that equipment. In the spirit of seva—a Sanskrit word meaning “selfless service”—even a small technical task can become meaningful when done with patience, attention, and honesty.

A bearing may look simple, but its measurements must be accurate. A small mistake in bore size, outside diameter, or width can lead to vibration, overheating, early failure, or damage to the shaft and housing. Whether you are replacing a ball bearing, roller bearing, tapered bearing, or mounted bearing, learning how to measure a bearing correctly will help you choose the right replacement and avoid costly errors.

Below is a practical, step-by-step guide for measuring bearings with care, clarity, and confidence.

Bearings support rotating parts and help reduce friction between moving components. They are found in electric motors, vehicles, pumps, gearboxes, fans, bicycles, agricultural equipment, industrial machines, and many household appliances.

If the bearing is too loose, it may wobble or slip. If it is too tight, it may overheat or seize. If the width is wrong, the bearing may not seat properly. This is why accurate bearing measurement is essential.

Accuracy Protects the Whole Assembly

A bearing is part of a larger system. The shaft, housing, seals, lubrication, load, and speed all work together. When one measurement is incorrect, the whole assembly can suffer.

For example, if a bearing’s inner diameter is slightly too large, it may not grip the shaft properly. If the outside diameter is too small, it may spin inside the housing. Both situations can cause wear and failure.

Measurement Prevents Guesswork

Many people try to replace a bearing by appearance alone. This can be risky because two bearings may look almost identical but have different dimensions, internal clearances, seal types, or load ratings.

Correct measuring gives you reliable information. It helps you confirm the bearing size even if the part number is worn, damaged, or missing.

A Mindful Approach Reduces Waste

In Bhakti Yoga, the path of devotion, everyday actions can become offerings when done with sincerity. Measuring carefully is a humble form of responsibility. It prevents unnecessary returns, wasted parts, and repeated repairs.

As the Bhagavad Gita teaches, we can offer our work with care and dedication, without rushing or acting carelessly. In a practical sense, this means slowing down, checking twice, and honoring the task in front of us.

When learning about how to measure a bearing correctly, it’s also beneficial to understand the broader context of motor performance and potential issues. An insightful article that delves into this topic is “Single Phase vs Three Phase Motors: Common Failures and Symptoms,” which discusses the differences between motor types and highlights common failures that can affect overall machinery performance. You can read the article for more information by following this link: Single Phase vs Three Phase Motors: Common Failures and Symptoms.

Basic Bearing Dimensions You Need to Measure

Most standard bearings are identified by three main dimensions: inner diameter, outside diameter, and width. These are often written in the order ID × OD × W.

For example, a bearing listed as 25 mm × 52 mm × 15 mm has:

  • Inner diameter: 25 mm
  • Outside diameter: 52 mm
  • Width: 15 mm

Inner Diameter

The inner diameter, often called the bore size, is the hole in the center of the bearing. This is the part that fits onto the shaft.

To measure the inner diameter, place the inside jaws of your caliper inside the bore and gently open them until they touch both sides. Keep the caliper straight and level. Do not angle it, because even a small tilt can create an inaccurate reading.

For very precise work, a bore gauge or inside micrometer may be better than a standard caliper.

Outside Diameter

The outside diameter is the total width across the outside of the bearing. This is the part that fits into the housing.

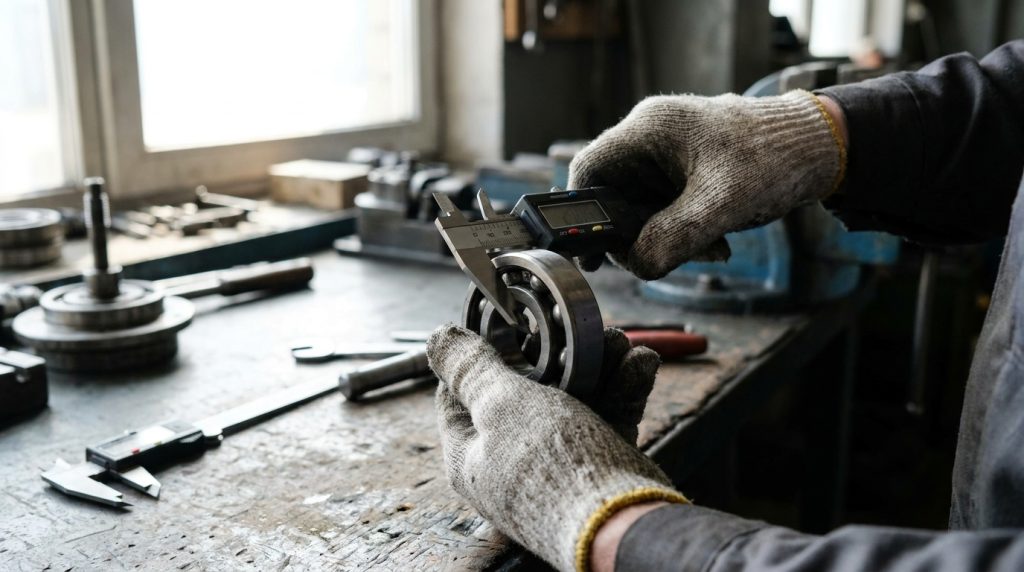

To measure the outside diameter, use the outside jaws of a caliper. Place the bearing between the jaws and close them gently until they touch the outer race. Avoid squeezing too hard, especially if the bearing is small or damaged.

Measure across the widest part of the bearing. If the bearing is worn or out of round, take several readings in different positions.

Bearing Width

The bearing width is the thickness of the bearing from one side face to the other. This measurement is sometimes called the bearing height, especially for certain bearing types.

Use the outside jaws of the caliper and measure across the bearing’s side faces. Make sure the jaws are flat against the faces and not resting on a seal, shield, or chamfered edge.

Chamfers and Rounded Edges

Many bearings have chamfered or rounded edges. These edges help the bearing fit into the shaft or housing without sharp interference.

Do not measure from the chamfer when recording width or diameter. Always measure from the true flat surfaces or full outside diameter.

Tools Needed to Measure a Bearing Correctly

The right tool makes the work easier and more accurate. You do not always need expensive equipment, but you do need clean, reliable measuring tools.

Digital Caliper

A digital caliper is one of the most useful tools for bearing measurement. It can measure inner diameter, outside diameter, and width. It is easy to read and can often switch between millimeters and inches.

For most general bearing identification, a good digital caliper is enough. Choose one with a resolution of at least 0.01 mm or 0.0005 inch if possible.

Before measuring, close the jaws and press zero. This simple step prevents many mistakes.

Vernier Caliper

A vernier caliper works without batteries and can be very accurate when used properly. It requires more practice to read, but many technicians trust it because of its durability.

If you use a vernier caliper, take your time reading the scale. Rushing the reading can lead to errors.

Micrometer

A micrometer provides more precise measurements than a caliper. It is especially helpful when measuring shafts or bearing outside diameters where small tolerances matter.

Use a micrometer gently. Most micrometers have a ratchet or friction thimble to help apply consistent pressure. This protects both the tool and the part.

Bore Gauge or Inside Micrometer

For high-precision inner diameter measurement, a bore gauge or inside micrometer is better than caliper jaws. This is especially true for large bearings, worn bearings, or precision assemblies.

A bore gauge can also help detect whether the bore is out of round.

Clean Cloth and Solvent

Dirt, grease, rust, and metal chips can affect your measurements. Before measuring, clean the bearing carefully with a cloth. If needed, use a suitable solvent and allow the bearing to dry.

A clean surface is like a calm mind. In Bhakti practice, sadhana means daily spiritual discipline. In measurement, our small discipline is cleaning, zeroing the tool, and checking our reading.

Please check out our latest article at https://cemindustrialsupply.com/news/ for more information.

Step-by-Step Guide: How to Measure a Bearing Correctly

Now let us walk through the complete process. Move slowly and gently. Accurate measuring is not about force. It is about attention.

Step 1: Clean the Bearing

Wipe away grease, oil, dust, or rust from the bearing. Pay special attention to the bore, outer race, and side faces.

If the bearing has been removed from equipment, inspect it for damage. Cracks, heavy wear, corrosion, or deformation can affect your measurements.

If the bearing is badly damaged, it may not represent the original size accurately. In that case, look for a part number or measure the shaft and housing as well.

Step 2: Look for Bearing Markings

Before measuring, check the bearing for numbers or letters stamped on the side. These markings may identify the bearing series, size, seal type, clearance, and manufacturer.

For example, a common bearing number like 6205 usually tells you the bearing type and bore size. A 6205 bearing typically has a 25 mm bore, 52 mm outside diameter, and 15 mm width.

Additional suffixes may matter:

  • ZZ or 2Z often means metal shields on both sides
  • 2RS may mean rubber seals on both sides
  • C3 often means greater internal clearance
  • NR may indicate a snap ring groove
  • P5 or P4 may indicate higher precision

Do not ignore suffixes. Two bearings with the same main number may perform differently if the seals, clearance, or precision class are different.

Step 3: Measure the Inner Diameter

Open the inside jaws of the caliper and place them inside the bearing bore. Keep the caliper square to the bearing.

Gently expand the jaws until they touch the inner race. Read the measurement.

To confirm accuracy, rotate the bearing slightly and measure again in another position. If both readings match, your measurement is likely reliable.

If the readings differ, the bearing may be worn, damaged, or out of round.

Step 4: Measure the Outside Diameter

Place the bearing between the outside jaws of the caliper. Close the jaws gently around the outer race.

Make sure the caliper is measuring straight across the center of the bearing. If you measure off-center, the reading will be smaller than the true outside diameter.

Take at least two readings at different angles. This helps confirm whether the bearing is round and whether your measurement is correct.

Step 5: Measure the Width

Measure the bearing from one side face to the other. Keep the caliper jaws flat and parallel.

Do not include raised seals, shields, retaining rings, or damaged burrs unless they are part of the required mounting width. For replacement identification, you usually want the actual bearing width.

Step 6: Record the Measurements Clearly

Write the dimensions in a clear order:

Inner Diameter × Outside Diameter × Width

For example:

20 mm × 47 mm × 14 mm

Also write down any markings, seal type, special features, or notes about damage. If the bearing came from a machine, record where it was installed.

This simple habit can save time later.

When it comes to understanding the intricacies of measuring a bearing correctly, it can be beneficial to explore related topics that enhance your knowledge of tools and techniques. For instance, if you’re interested in drilling applications, you might find it useful to read about the differences between a hammer drill and a rotary hammer in this informative article. By understanding these tools, you can better appreciate how precise measurements play a crucial role in achieving optimal performance in various projects. You can check out the article here: hammer drill vs rotary hammer.

Measuring Different Types of Bearings

Not all bearings are measured in exactly the same way. The basic principles are similar, but certain bearing designs require extra attention.

Measuring Ball Bearings

Deep groove ball bearings are among the most common types. They are usually easy to measure because they have a simple shape.

Measure the bore, outside diameter, and width. Then check the seals or shields. If the bearing has rubber seals on both sides, you may need a 2RS replacement. If it has metal shields, look for ZZ or 2Z.

Also check whether the bearing has a snap ring groove. If it does, you may need a bearing with the same groove or retaining ring arrangement.

Measuring Roller Bearings

Roller bearings may include cylindrical roller bearings, needle roller bearings, spherical roller bearings, and tapered roller bearings.

For cylindrical and spherical roller bearings, measure the bore, outside diameter, and width as usual. However, also pay attention to whether the bearing has separable inner or outer rings.

Needle roller bearings may have very thin outer shells. Measure carefully, because they can be easily distorted if squeezed too hard.

Measuring Tapered Roller Bearings

Tapered roller bearings are a little more complex. They often come in two parts: the cone, which includes the inner ring and rollers, and the cup, which is the outer ring.

For tapered roller bearings, measure:

  • Cone bore
  • Cup outside diameter
  • Cone width
  • Cup width
  • Overall assembled width, if possible

It is best to identify tapered roller bearings by part numbers if they are visible. The cone and cup may each have separate numbers.

Measuring Flanged Bearings

A flanged bearing has a lip or flange on the outer ring. The flange helps position the bearing in a housing.

When measuring a flanged bearing, record:

  • Bore diameter
  • Main outside diameter
  • Flange outside diameter
  • Bearing width
  • Flange thickness

Do not confuse the flange diameter with the main outside diameter. Both measurements may be needed.

Measuring Mounted Bearings

Mounted bearings, such as pillow block bearings and flange units, include a bearing insert inside a housing.

If replacing only the insert, measure the insert bearing. If replacing the whole unit, measure mounting bolt distances, shaft size, housing style, and overall dimensions.

Look for markings on both the insert and the housing.

Common Mistakes When Measuring Bearings

Even experienced people can make mistakes when they are tired, rushed, or working in poor lighting. A humble approach helps. We measure, we check, and we remain open to correction.

Measuring in the Wrong Units

Bearings may be metric or imperial. Many bearings are metric, but inch-size bearings are also common, especially in older equipment, agricultural machinery, trailers, and some automotive applications.

If a measurement seems close to both metric and inch sizes, compare carefully. For example, 25.4 mm equals exactly 1 inch. A bearing that measures around 25.4 mm may be an inch-size bearing, not a 25 mm metric bearing.

Use both unit settings on your caliper when needed.

Measuring a Worn Bearing Only

A worn bearing may no longer match its original dimensions. The bore may be enlarged, the outside diameter may be damaged, or the width may be affected by wear.

If possible, also measure the shaft and housing. This gives you a better understanding of the original fit.

Ignoring Bearing Suffixes

A bearing’s dimensions are important, but they are not the whole story. Internal clearance, cage material, seal type, lubrication, temperature rating, and precision class can all matter.

For example, replacing a C3 clearance bearing with a standard clearance bearing in a high-temperature motor may cause premature failure.

Squeezing the Caliper Too Hard

Too much pressure can distort thin bearings or give false readings. Use gentle, consistent contact.

Measuring is not a test of strength. It is a practice of sensitivity.

Measuring Over Dirt or Burrs

A small piece of dirt can change your reading. A burr on the edge can make a bearing seem wider than it really is.

Clean first. Inspect closely. Then measure.

Understanding Bearing Numbers and Size Codes

Bearing numbers can feel confusing at first, but they often contain helpful information. Once you understand the basics, they become less intimidating.

Common Bearing Series

A number like 6205 can be understood in parts.

The first digit or digits often indicate the bearing type or series. For example:

  • 6 often indicates a deep groove ball bearing
  • 62 indicates a light series deep groove ball bearing
  • 63 indicates a medium series deep groove ball bearing

The next digits help identify the bore size.

Bore Size Codes

For many metric bearings, the last two digits indicate bore size in a special way.

Common examples:

  • 00 = 10 mm bore
  • 01 = 12 mm bore
  • 02 = 15 mm bore
  • 03 = 17 mm bore
  • 04 and above: multiply by 5

So a 6205 bearing has a bore code of 05. Multiply 5 × 5 = 25 mm bore.

A 6308 bearing has a bore code of 08. Multiply 8 × 5 = 40 mm bore.

This rule is helpful, but not universal for every bearing type. Always confirm with measurements or a manufacturer chart.

Seal and Shield Codes

Suffixes help describe protection and construction.

Common suffixes include:

  • ZZ or 2Z: metal shields on both sides
  • RS: rubber seal on one side
  • 2RS: rubber seals on both sides
  • C3: greater internal clearance
  • NR: snap ring groove and ring
  • N: snap ring groove only

Different manufacturers may use slightly different suffixes, so check a reliable catalog when needed.

Measuring the Shaft and Housing

Sometimes measuring the bearing is not enough. If a bearing failed early, the shaft or housing may be worn or incorrectly sized.

Measuring the Shaft

Use a micrometer to measure the shaft where the bearing sits. Measure in several places around the shaft and along the bearing seat.

Look for signs of wear, scoring, corrosion, or an uneven surface. A shaft that is undersized can cause the inner race to spin, damaging the shaft further.

Measuring the Housing Bore

Use an inside micrometer, bore gauge, or telescoping gauge with a micrometer to measure the housing bore.

Check for out-of-round conditions, wear marks, cracks, or looseness. If the housing is damaged, simply installing a new bearing may not solve the problem.

Checking Fit

Bearings are designed with specific fits. Some require a tight interference fit on the shaft. Others require a tight fit in the housing. The correct fit depends on load direction, speed, temperature, and machine design.

If you are unsure, consult the equipment manual or a bearing supplier.

Practical Tips for Better Bearing Measurement

A few simple habits can improve your accuracy and confidence.

Measure More Than Once

Take at least two or three readings for each dimension. If the readings are different, slow down and find out why.

This is similar to chanting or prayer in Bhakti Yoga. Repetition is not empty when done with attention. It deepens awareness.

Use Good Lighting

Good lighting helps you see edges, markings, seals, and damage. Poor lighting can lead to misread numbers and inaccurate measurements.

Keep Tools Calibrated

A damaged or uncalibrated caliper can mislead you. Check your tools regularly. Close the jaws and confirm zero before each use.

For precision work, calibration is not optional. It is part of responsible service.

Compare With a Bearing Chart

After measuring, compare your dimensions with a bearing size chart or manufacturer catalog. Standard bearings usually match known sizes.

If your measurement is close to a standard size, the standard size is often correct. For example, a bearing measured as 24.98 mm bore is likely a 25 mm bore bearing.

Take Photos

If you are ordering a replacement online or asking a supplier for help, take clear photos of the bearing, markings, seals, and measuring tool readings.

Photos reduce confusion and help others serve you better.

When to Ask for Help

There is no shame in asking for guidance. Humility is a strength, both in technical work and spiritual life.

In the Bhakti tradition, sadhu-sanga means keeping company with sincere and wise people. In practical work, this may look like asking an experienced technician, bearing supplier, mechanic, or engineer to confirm your measurements.

Ask for Help If the Bearing Is Unusual

Some bearings are custom-made or machine-specific. Others have special coatings, cages, clearances, or lubrication.

If you cannot match the bearing by size and number, consult a professional.

Ask for Help If Failure Was Severe

If the bearing failed catastrophically, measuring the old part may not be reliable. You may need to inspect the shaft, housing, alignment, lubrication system, and load conditions.

Replacing the bearing without addressing the cause may lead to another failure.

Ask for Help for Safety-Critical Equipment

For vehicles, aircraft, cranes, medical equipment, or high-speed machinery, do not guess. Use manufacturer specifications and qualified support.

Safety is an expression of care for life.

A Simple Bearing Measurement Checklist

Before ordering a replacement bearing, gather the following information:

Essential Measurements

  • Inner diameter or bore size
  • Outside diameter
  • Width
  • Units: metric or inch
  • Bearing type

Important Details

  • Bearing number and suffixes
  • Seal or shield type
  • Internal clearance, such as C3
  • Snap ring groove or flange
  • Cage material, if known
  • Application and operating conditions

Extra Checks

  • Shaft diameter
  • Housing bore diameter
  • Signs of wear or damage
  • Lubrication condition
  • Reason for bearing failure

This checklist helps you move from uncertainty to clarity.

Bringing Care and Devotion Into Practical Work

It may seem unusual to connect bearing measurement with spiritual growth, but Bhakti Yoga invites us to see every sincere action as part of our relationship with God. Bhakti means loving devotion. Yoga means connection. So Bhakti Yoga is the path of reconnecting with the Divine through love.

This path includes chanting sacred names, prayer, service, study, and living with kindness. It does not require us to abandon our daily responsibilities. Rather, it teaches us to bring devotion into them.

When you measure a bearing carefully, you practice patience. When you clean your tools, you practice respect. When you avoid shortcuts, you practice truthfulness. When your work helps others, you practice service.

The Bhagavad Gita encourages us to offer our work with sincerity. Even ordinary duties can become sacred when performed with a humble heart.

So whether you are in a workshop, garage, factory, farm, or home, you can pause for a moment. Take a breath. Offer the task. Then measure with care.

Final Thoughts on Measuring a Bearing Correctly

To measure a bearing correctly, begin with a clean bearing and reliable tools. Measure the inner diameter, outside diameter, and width carefully. Check markings and suffixes. Confirm whether the bearing is metric or inch. Look for seals, shields, flanges, snap rings, and special clearances. If the bearing is damaged, measure the shaft and housing too.

Most importantly, do not rush. A small amount of patience can prevent a large problem later.

In practical life, accuracy is a form of kindness. It protects machines, time, resources, and people. In spiritual life, sincerity is the heart of progress. Whether we are chanting, praying, serving, repairing, or measuring, we can take one honest step with love.

Everyone is welcome at The Bhakti House, no matter your background, beliefs, questions, or experience. If your heart feels even a small desire to grow closer to God, begin there. Take one sincere step—chant, pray, serve, learn, or simply offer today’s work with love.

[fluentform id=”3″]

FAQs

What is a bearing?

A bearing is a machine element that constrains relative motion to only the desired motion and reduces friction between moving parts. It is used to enable rotational or linear movement while minimizing friction and handling stress.

Why is it important to measure a bearing correctly?

Measuring a bearing correctly is important to ensure that the right size and type of bearing is selected for a specific application. Proper measurements help in determining the correct fit and alignment, which ultimately affects the performance and longevity of the bearing.

What are the common methods for measuring a bearing?

Common methods for measuring a bearing include using calipers, micrometers, and gauges to determine the inner and outer diameters, width, and overall dimensions of the bearing. Additionally, specialized tools such as bearing pullers and installation kits may be used for specific types of bearings.

What are the key measurements to take when measuring a bearing?

The key measurements to take when measuring a bearing include the inner diameter, outer diameter, width, and overall dimensions. These measurements are crucial for selecting the right replacement bearing or determining the proper fit for a new application.

What are the potential consequences of incorrect bearing measurements?

Incorrect bearing measurements can lead to improper fit, misalignment, increased friction, premature wear, and ultimately, bearing failure. This can result in equipment downtime, increased maintenance costs, and potential safety hazards. Therefore, it is important to measure bearings correctly to ensure optimal performance and reliability.
